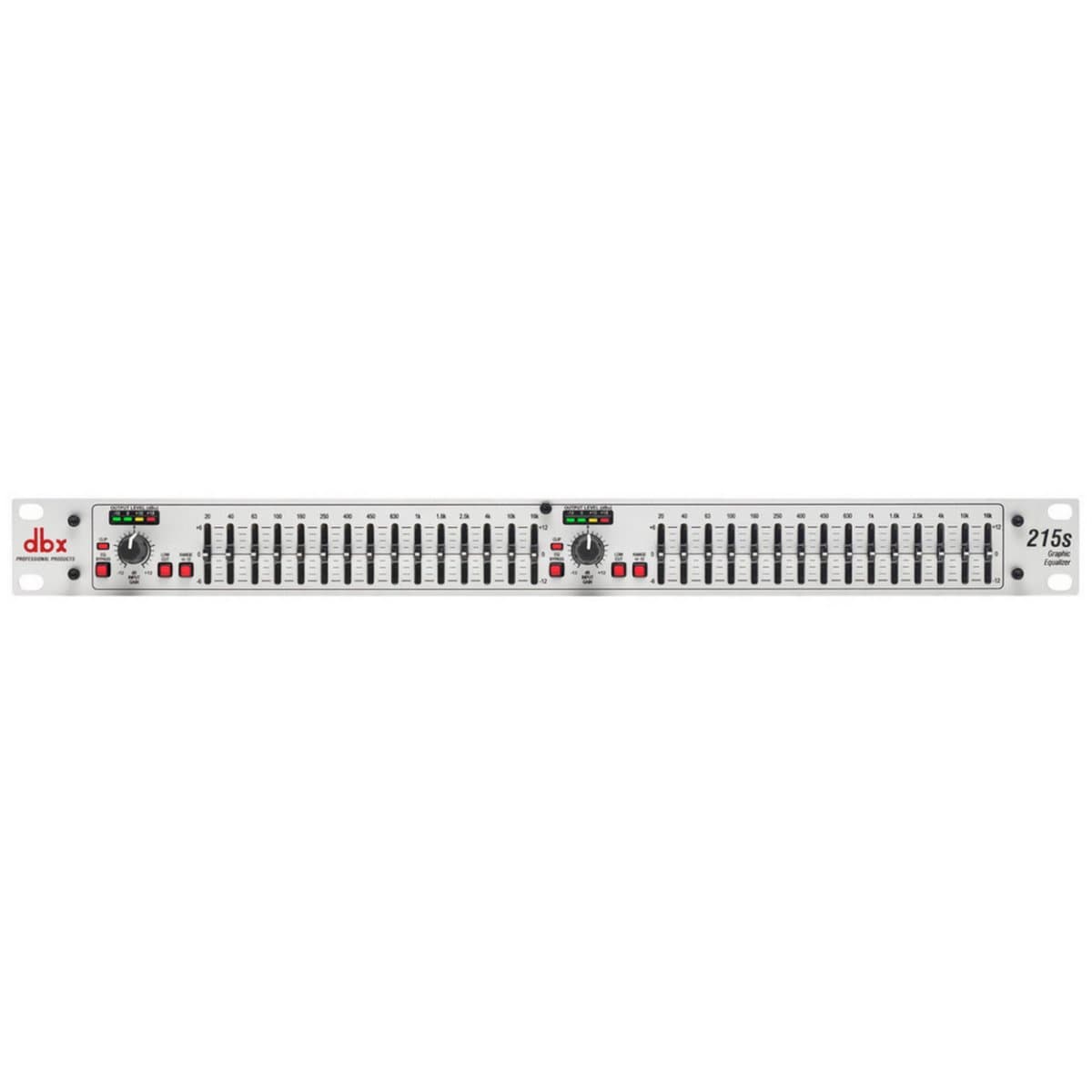

DBX 215S 2x15 Band Grafik Ekolayzer

Input Connectors 1/4" TRS, female XLR (pin 2 hot) Input Type Electronically balanced/unbalanced, RF filtered Input Impedance Balanced 40 kOhm, unbalanced 20 kOhm Max Input >+21dBu balanced or unbalanced CMRR >40dB, typically >55dB at 1kHz Output Connectors 1/4" TRS, male XLR (pin 2 hot) Output Type Impedance-balanced/unbalanced, RF filtered Output Impedance Balanced 100 ohm, unbalanced 50 ohm Max Output >+21dBu balanced/unbalanced into 2 kOhm or greater; >+18dBm balanced/unbalanced (into 600 ohm) Bandwidth 20Hz to 20kHz, +0.5/-1dB Frequency Response <10Hz to >50kHz, +0.5/-3dB Dynamic Range Typically >112dB Signal to Noise Ratio Typically >95dB THD+Noise <0.003% Interchannel Crosstalk <-90db, 20Hz to 20kHz Bypass Switch Bypasses the graphic equalizer section in the signal path Low cut Switch Activates the 50Hz 12dB/octave Bessel high-pass filter Range Switch Selects either +/- 6dB or +/- 12dB slider boost/cut range Operating Voltage 100VAC-240VAC 50/60Hz Power Consumption 15W Power Connector IEC receptacle Unit Weight 4.8 lbs.(2.2 kg) Shipping Weight 6.2 lbs.(2.8kg) Dimensions 1.75" (4.4cm) H x 6"(15.24cm) D x 19" (48.26cm) W
